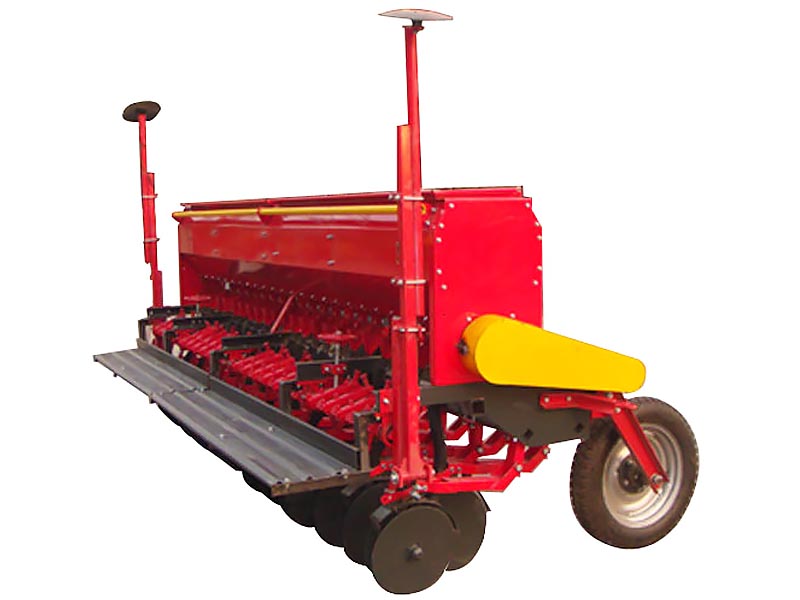

2BX-24 Grain Drill

2BX-24 Grain drill is suitable for wheat, barley, millet, sorghum and soybeans et. Seeding quantity, seeding depth and seeding spacing can be adjusted according to the needs of agricultural technology.

We're here to help: Easy ways to get the answers you need.

Send Email Chat Now

Describe

2BX-24 Grain drill

The machine adopts linkage and tractor hitch, transportation is convenient.

The machine adopts outside slot round row device, metering, and blocking for powder metallurgy parts, possesses the advantages of heat resistance, cold. Using corrugated rubber grain tube, two smooth; Adopt double bearing steel opener, reliable work. Using the handwheel adjustment sowing depth, easy to use.

Transmission part is composed of rubber wheel, sprocket and chain, reliable durable, can be suitable for high-speed operation.

Parameter

Machine model	2BX-24
Overall dimensions (cm)	199×390×143
Structure mass (kg)	1030
Working width (cm)	360
Sowing depth (mm)	40-80
Power (kW)	55-74
Drive way	Chain drive
Kind of tank volume (L)	600
Maximum rate (kg/hm2)
Height from the ground (mm)	≥300
Metering device form	Iron outside slot round
Pure working hour rate (hm2 / h)	1.44-2.16
Working speed (km/h)	6-8
Basic spacing (mm)	150
Opener form	Double disc type steel
