| Tractor Parameters |
Model |
DF-750 |

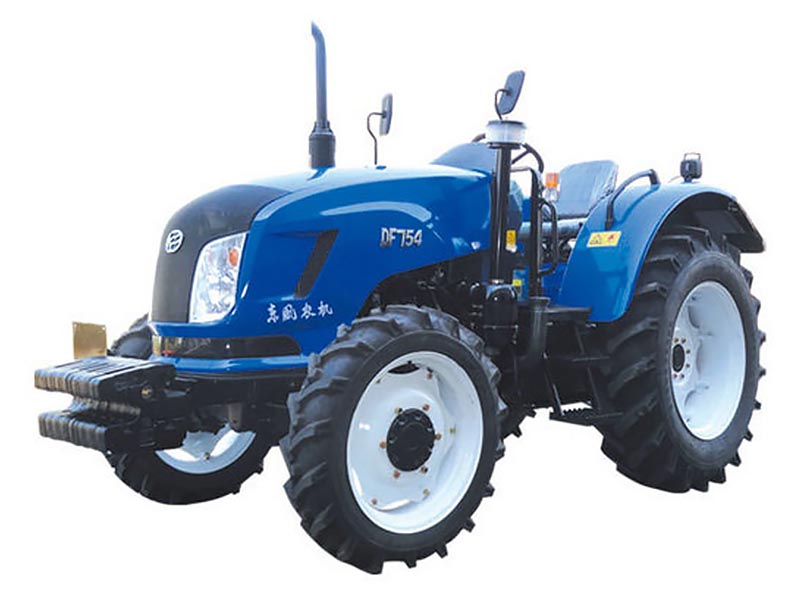

DF-754 |
| |
Drive Type |
2WD |
4WD |
| |
Overall Dimensions L×W×H(mm) |
3890×1828×2440 (Height to steering wheel) |
3890×1828×2440 (Height to steering wheel) |
| |
|
|
|
| |
Wheel Track(mm) |
Front |
1420 |
1420 |
| |
|
Rear |
1450-1650(1450) |
1450-1650(1450) |
| |
Wheel Base(mm) |
2080 |
2080 |
| |
Ground Clearancre (mm) |
Under Front Axle |
380 |
380 |
| |
|
Under Rear Axle |
|
|
| |
Rated Traction Force(N) |
16000 |
16000 |
| |
|
|
|
| |
Construction Mass(Kg) |
2530 |
2530 |
| |
Min. Turning Radius(m) |
4.1 |
4.1 |
| |
Theoretical Speed(no creeper) |
Forward(km/h) |
1.70,2.80,3.60,5.70,4.45,7.34 9.44,14.9,11.7,14.9,19.3,24.8,39.2 |
1.70,2.80,3.60,5.70,4.45,7.34 9.44,14.9,11.7,14.9,19.3,24.8,39.2 |
| |
|
|
|
|
| |
|
Reverse(km/h) |
4.50,7.50,9.60,15.20 |
4.50,7.50,9.60,15.20 |
| |
Theoretical Speed(with creeper) |
Forward(km/h) |
0.30,0.50,0.66,1.05,0.82,1.35 1.73,2.74,2.15,3.54,4.55,7.20 |
0.30,0.50,0.66,1.05,0.82,1.35 1.73,2.74,2.15,3.54,4.55,7.20 |
| |
|
|
|
|
| |
|
Reverse(km/h) |
0.83,1.37,1.76,2.79 |
0.83,1.37,1.76,2.79 |
| Engine Specifications |
Model |
R4105T |
R4105T |
| |
Type |
4-cylinder,Upright inline cylinder radiator cooling,4-storke cycle,direct-injetion |
4-cylinder,Upright inline cylinder radiator cooling,4-storke cycle,direct-injetion |
| |
|
|
|
| |
Rated Power(Kw/hp) |
55.2/75.0 |
55.2/75.0 |
| |
Rated Fuel Consumption(g/kw/h) |
≤242 |
≤242 |
| |
Rated Speed(rpm) |
2300 |
2300 |
| |
Bore×Stroke(mm) |
105×135 |
105×135 |
| |
Total Displacement(L) |
4.67 |
4.67 |
| Drive System |
Clutch |
Dry Linkage type dual shift Function clutch |
Dry Linkage type dual shift Function clutch |
| |
Gear Box |
4×(3+1) |
4×(3+1) |
| |
Main Drive |
One Pair of Spiral Bevel gears |
One Pair of Spiral Bevel gears |
| |
Differential |
Bevel Gear |
Bevel Gear |
| |
Differential Lock |
sliding pin,foot operated |
sliding pin,foot operated |
| |
Final Transmissions |
planetary reduction gear |
planetary reduction gear |
| Travelling Mechanism |
Tyre |
front |
8.3-24 |
8.3-24 |
| |
|
rear |
14.9-30 |
14.9-30 |
| |
Steering Gear |
|
Hydraulic streering |
Hydraulic streering |
| |
Brake |
|
Oil immersed muliplate disc |
Oil immersed muliplate disc |
| Working Device |
Hydraulic System |
Lifting Capacity at 610 mm Behind Lift Point(Kg) |
1200 |
1200 |
