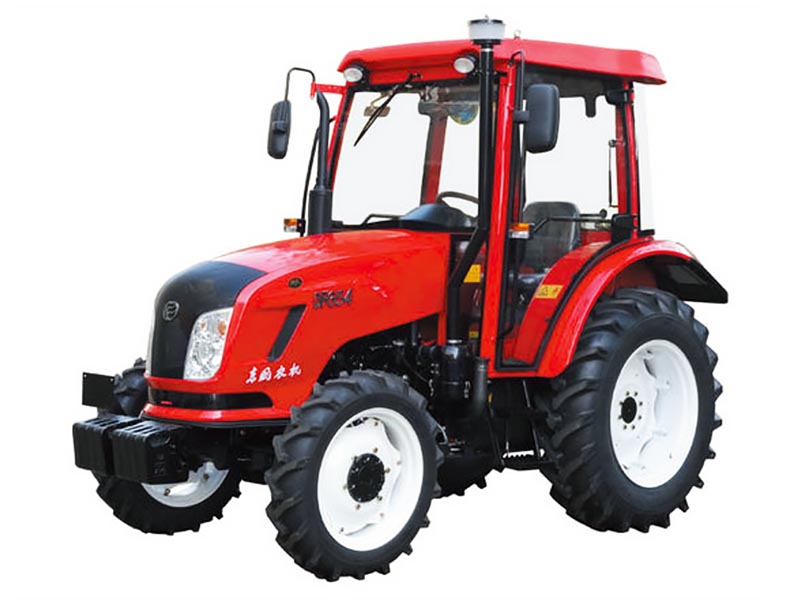

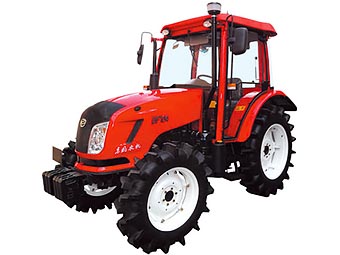

| Tractor Parameters |
Model |
DF-650 |
DF-654 |
| Drive Type |
2WD |
4WD |
| Overall Dimensions L×W×H(mm) |
3890×1828×2400 (Height to steering wheel) |
3890×1828×2440 (Height to steering wheel) |
| Wheel Track(mm) |
Front |
1420-1620(1420) |
1420 |
| Rear |
1450-1650(1450) |
1450-1650(1450) |
| Wheel Base(mm) |
2060 |
2080 |
| Ground Clearancre (mm) |
Under Front Axle |
500 |
380 |
| Under Rear Axle |
| Rated Traction Force(N) |
11500 |
15000 |
| Construction Mass(Kg) |
2280 |
2430 |
| Min. Turning Radius(m) |
4 |
4.1 |
| Theoretical Speed(no creeper) |
Forward(km/h) |
1.70,2.80,3.60,5.70,4.45,7.34 9.44,14.9,11.7,14.9,19.3,24.8,39.2 |
1.70,2.80,3.60,5.70,4.45,7.34 9.44,14.9,11.7,14.9,19.3,24.8,39.2 |
| Reverse(km/h) |
4.50,7.50,9.60,15.20 |
4.50,7.50,9.60,15.20 |
| Theoretical Speed(with creeper) |
Forward(km/h) |
0.30,0.50,0.66,1.05,0.82,1.35 1.73,2.74,2.15,3.54,4.55,7.20 |
0.30,0.50,0.66,1.05,0.82,1.35 1.73,2.74,2.15,3.54,4.55,7.20 |
| Reverse(km/h) |
0.83,1.37,1.76,2.79 |
0.83,1.37,1.76,2.79 |
| Engine Specifications |
Model |
YTR4105T,LR4108T,R4105T |
YTR4105T,LR4108T,R4105T |
| Type |
4-cylinder,Upright inline cylinderradiator cooling,4-storke cycle,direct-injetion |
4-cylinder,Upright inline cylinder radiator cooling,4-storke cycle,direct-injetion |
| Rated Power(Kw/hp) |
48.0/65.0 |
48.0/65.0 |
| Rated Fuel Consumption(g/kw/h) |
≤242 |
≤242 |
| Rated Speed(rpm) |
2300 |
2300 |
| Bore×Stroke(mm) |
105×125, 108×130, 105×130 |
105×125 |
| Total Displacement(L) |
4.33, 4.76, 4.5 |
4.33 |
| Drive System |
Clutch |
Dry Linkage type dual shift Function clutch |
Dry Linkage type dual shift Function clutch |
| Gear Box |
4×(3+1),sleeve, gear |
4×(3+1) |
| Main Drive |
One Pair of Spiral Bevel gears |
One Pair of Spiral Bevel gears |
| Differential |
Bevel Gear |
Bevel Gear |
| Differential Lock |
sliding pin,foot operated |
sliding pin,foot operated |
| Final Transmissions |
planetary reduction gear |
planetary reduction gear |
| Travelling Mechanism |
Tyre |
front |
6.50-20 |
8.3-24 |
| |
rear |
14.9-30 |
14.9-30 |
| Steering Gear |
|
Hydraulic streering |
Hydraulic streering |
| Brake |
|
Oil immersed muliplate disc |
Oil immersed muliplate disc |
| Working Device |
Hydraulic System |
Lifting Capacity at 610 mm Behind Lift Point(Kg) |
12100 |
1200 |
| 3-point Suspension |
Category:II |
Category:II |
| P.T.O.Shaft |
Rotating Speed(rpm) |
540/1000 |
540/1000 |
| Spline size |
6-φ35 Rectangular spline |
6-φ35 Rectangular spline |
