| Tractor Parameters |
Model |

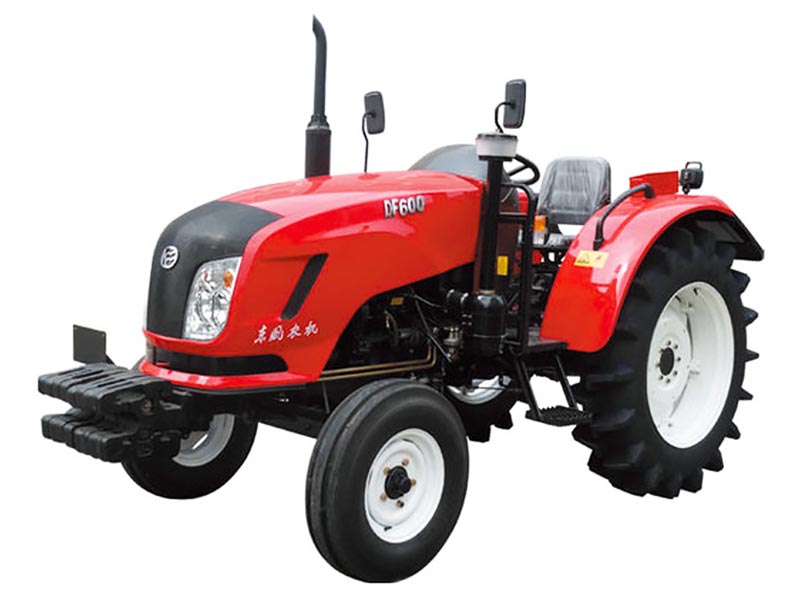

DF-600 |
DF-604 |
| Drive Type |
2WD |
4WD |
| Overall Dimensions L×W×H(mm) |
3890×1828×2400 (Height to steering wheel) |
3890×1828×2400 (Height to steering wheel) |
| Wheel Track(mm) |
Front |
1420 (Usually use),1520,1620 |
1420 |
| Rear |
1450-1650(1450) |
1450-1650(1450) |
| Wheel Base(mm) |
2060 |
2080 |
| Ground Clearancre (mm) |
Under Front Axle |
477 |
353 |
| Under Rear Axle |
|
|
| Rated Traction Force(N) |
11200 |
14500 |
| Construction Mass(Kg) |
2230 |
2380 |
| Min. Turning Radius(m) |
4.2 |
4.1 |
| Theoretical Speed(no creeper) |
Forward(km/h) |
1.63,2.70,3.47,5.49,10.29,7.07 9.10,14.40,1.26,18.57,23.88,37.80 |
1.63,2.70,3.47,5.49,10.29,7.07 9.10,14.40,1.26,18.57,23.88,37.80 |
| |
| Reverse(km/h) |
4.34,7.199.24,14.63 |
4.34,7.199.24,14.63 |
| Theoretical Speed(with creeper) |
Forward(km/h) |
0.30,0.49,0.64,1.00,0.79,1.30 |
0.30,0.49,0.64,1.00,0.79,1.30 |
| |
1.67,2.64,.207,3.41,4.38,6.94 |
1.67,2.64,.207,3.41,4.38,6.94 |
| Reverse(km/h) |
0.80,1.32,1.70,2.69 |
0.80,1.32,1.70,2.69 |
| Engine Specifications |
Model |
CZ4102T, YTR4105T, LR4108T |
CZ4102T, YTR4105T, LR4108T |
| Type |
4-cylinder,Upright inline cylinder radiator cooling,4-storke cycle,direct-injetion |
4-cylinder,Upright inline cylinder radiator cooling,4-storke cycle,direct-injetion |
| Rated Power(Kw/hp) |
44.1/60.0 |
44.1/60.0 |
| Rated Fuel Consumption(g/kw/h) |
≤242 |
≤242 |
| Rated Speed(rpm) |
2300 |
2300 |
| Bore×Stroke(mm) |
105×125 |
105×125 |
| Total Displacement(L) |
4.33 |
4.33 |
| Drive System |
Clutch |
Dry Linkage type dual shift Function clutch |
Dry Linkage type dual shift Function clutch |
| Gear Box |
4×(3+1),sleeve gear |
4×(3+1),sleeve gear |
| Main Drive |
One Pair of Spiral Bevel gears |
One Pair of Spiral Bevel gears |
| Differential |
Bevel Gear |
Bevel Gear |
| Differential Lock |
sliding pin,foot operated |
sliding pin,foot operated |
| Final Transmissions |
planetary reduction gear |
planetary reduction gear |
| Travelling Mechanism |
Tyre |
6.50-16 |
8.3-24 |
| |
14.9-28 |
14.9-28 |
| Steering Gear |
Hydraulic streering |
Hydraulic streering |
| Brake |
Wet disc(Multiple) |
Wet disc(Multiple) |
| Working Device |
Hydraulic System |
1200 |
1200 |
| Category:II |
Category:II |
| P.T.O.Shaft |
540/1000 |
540/1000 |
| 6-φ35 Rectangular spline |
6-φ35 Rectangular spline |
