| Model |
DF-300 |

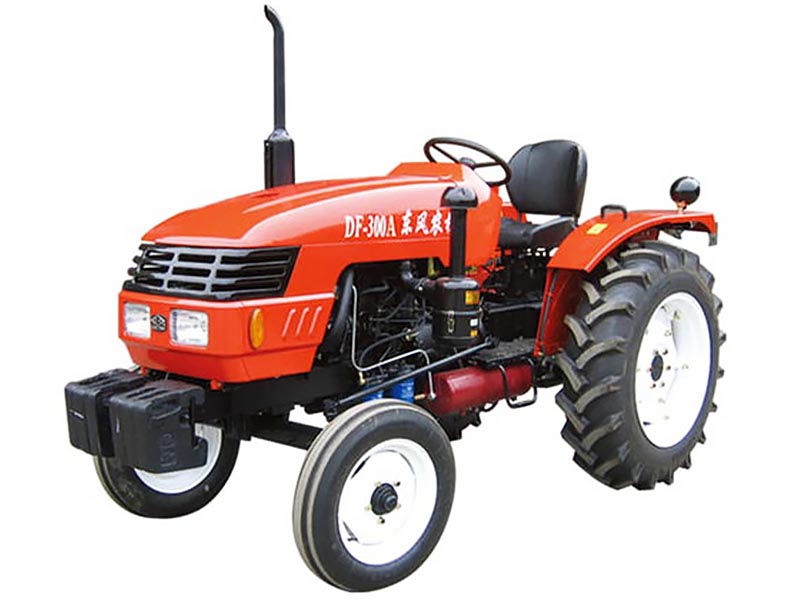

DF-300A |
DF-304 |
DF-304A |
| Drive Type |
2WD |
2WD |
4WD |
4WD |
| Overall Dimensions |
3235×1485×1536 (Height to steering wheel) |
3235×1485×1536 (Height to steering wheel) |
3235×1485×1536 (Height to steering wheel) |
3235×1485×1536 (Height to steering wheel) |
| L×W×H(mm) |
| Wheel Track(mm) |
Front |
1100(Usually use),1200,1300,1400 |
1100(Usually use),1200,1300,1400 |
1200 |
1200 |
| |
Rear |
1100(Usually use),1200,1300,1400 |
1100(Usually use),1200,1300,1400 |
1100(Usually use),1200,1300,1400 |
1100(Usually use),1200,1300,1400 |
| Wheel Base(mm) |
1705 |
1705 |
1699 |
1699 |
| Ground |
Under Front Axle |
420 |
420 |
358 |
358 |
| Clearancre(mm) |
Under Rear Axle |
378 |
378 |
378 |
378 |
| Rated Traction Force(N) |
In Paddy Fields |
4200 |
4200 |
4950 |
4950 |
| |
6300 |
6300 |
6940 |
6940 |
| In Dry Fields |
1240 |
1240 |
1330 |
1330 |
| Construction Mass(Kg) |
2.5 |
2.5 |
2.5 |
2.5 |
| Min. Turning Radius(m) |
1.73,2.85,4.59,4.17,8.98,14.79,23.80,31.96 |
1.29,1.73,3.34,5.57,6.7,8.95,17.31,28.85 |
1.73,2.85,4.59,6.17,8.98,14.29,23.80,31.96 |
1.29,1.73.3.34,5.57,6.7,8.95,17.31,28.85 |
| Theoretical Speed(Km/h) |
Forward |
2.28,11.83 |
1.52,7.87 |
2.28,11.83 |
1.52,7.87 |
| Reverse |
ZN390T |
ZN390T |
ZN390T |
ZN390T |
| Model |
3-cylinder,Upright inline cylinder |
3-cylinder,Upright inline cylinder |
3-cylinder,Upright inline cylinder |
3-cylinder,Upright inline cylinder |
| Type |
radiator cooling,4-storke cycle,direct-injetion |
radiator cooling,4-storke cycle,direct-injetion |
radiator cooling,4-storke cycle,direct-injetion |
radiator cooling,4-storke cycle,direct-injetion |
| Rated Power(Kw/hp) |
22.0/30.0 |
22.0/30.0 |
22.0/30.0 |
22.0/30.0 |
| Rated Fuel Consumption(g/kw/h) |
≤255 |
≤255 |
≤255 |
≤255 |
| Rated Speed(rpm) |
2500 |
2500 |
2500 |
2500 |
| Bore×Stroke(mm) |
90×95 |
90×95 |
90×95 |
90×95 |
| Total Displacement(L) |
1.812 |
1.812 |
1.812 |
1.812 |
| Clutch |
Linkage type dual-function clutch |
Singal |
Linkage type dual-function clutch |
Singal clutch |
| Gear Box |
(4+1)×2,plannar 3-shaft for main transmission epicyclic gearing for auxiliary transmission |
(4+1)×2,plannar 3-shaft for main transmission epicyclic gearing for auxiliary transmission |
(4+1)×2,plannar 3-shaft for main transmission epicyclic gearing for auxiliary transmission |
(4+1)×2,plannar 3-shaft for main transmission epicyclic gearing for auxiliary transmission |
| Main Drive |
One Pair of Spiral Bevel gears |
One Pair of Spiral Bevel gears |
One Pair of Spiral Bevel gears |
One Pair of Spiral Bevel gears |
| Differential |
Bevel Gear |
Bevel Gear |
Bevel Gear |
Bevel Gear |
| Differential Lock |
Jaw Lock |
Jaw Lock |
Jaw Lock |
Jaw Lock |
| Final Transmissions |
Spur Gear,External Gearing |
Spur Gear,External Gearing |
Spur Gear,External Gearing |
Spur Gear,External Gearing |
| Tyre |
front |
5.00-15 |
5.00-15 |
6.50-16 |
6.50-16 |
| rear |
11.2-24 |
11.2-24 |
11.2-24 |
11.2-24 |
| Steering Gear |
Hydraulic streering |
Hydraulic streering |
Hydraulic streering |
Hydraulic streering |
| Brake |
Disk type |
Disk type |
Disk type |
Disk type |
| Hydraulic System |
Lifting Capacity at 610 mm Behind Lift Point(Kg) |
496 |
496 |
496 |
496 |
| 3-point Suspension |
Category:I |
Category:I |
Category:I |
Category:I |
| P.T.O.Shaft |
Rotating Speed(rpm) |
540/1000 |
540/730 |
540/1000 |
540/730 |
| Spline size |
6-φ35 Rectangular spline |
6-φ35 Rectangular spline |
6-φ35 Rectangular spline |
6-φ35 Rectangular spline |
