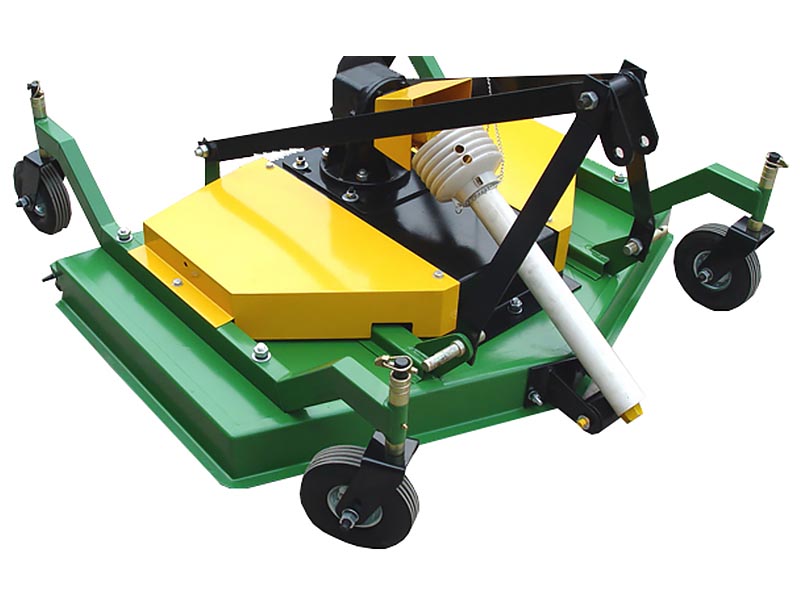

Finishing Mower

Ideal for work around golf courses, sporting fields, parklands, camping grounds, schools, homesteads and roadsides;

We're here to help: Easy ways to get the answers you need.

Send Email Chat Now

Describe

Finishing Mower

Uses:

- Perfect for use when presentation is essential;
- Ideal for work around golf courses, sporting fields, parklands, camping grounds, schools, homesteads and roadsides;
- Rear discharge for normal use or side discharge option for use in areas where the cuttings need to be thrown clear- like under orchards.

Features:

- Rear or side discharge options;
- 4 independent height adjustable castor wheels allow the mower to contour over uneven surfaces to provide an even finish;
- 1-3 high strength cutting blades for a more precision finish;
- floating top hitch to increase surface contouring.

Parameter

MODELS	FM-120	FM-150	FM -180
CUTTING WIDTH (INCHES)	120cm(48")	150cm(60")	180cm(72")
DIMENSIONS	1330x860x480mm	1640x995x480mm	1930x1180x480mm
CUTTING HEIGHT (INCHES)	25-100mm (1"-4")
WHEELS SIZES	Solid Rubber Tires with ball bearings 210 x 80 mm (8" x 3")
No. OF BLADES	3
BLADE MATERIAL	Spring Steel
BLADE SIZES	422x60x6mm	522x60x6mm	623x60x8mm
BLADE SPEED	3375rpm	2700rpm	2250rpm
3－POINT CATEGORY HITCH	Ⅰ	Ⅰ&Ⅱ	Ⅰ&Ⅱ
OPTIMUM P.T.O.	540rpm
P.T.O SPINE	6x6x800mm
MACHINE WEIGHT	195kg	215 kg	265kg
POWER REQUIRED	20-30 HP	25-50 HP	40-70 HP
MATCHED MODEL	20-40HP Series 45-50Hp Series 55-65Hp Series DF-704 EC Series G2 Series
