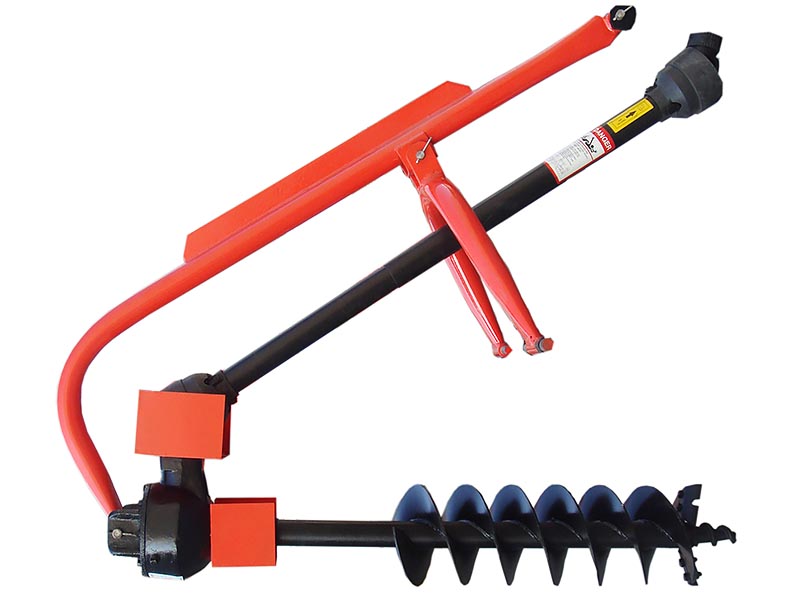

Hole Digger

Create fences with ease to keep wanted things in and unwanted things out

We're here to help: Easy ways to get the answers you need.

Send Email Chat Now

Describe

Hole Digger

Uses:

- Create fences with ease to keep wanted things in and unwanted things out
- For use in many soil types
- Ideally suited for fence building and tree planting around any type of property

Features:

- Auger are available in sizes from 6 to 20 inches(152 to 762mm) to suit many post sizes and soil types;
- Designed for strength and durability with re-enforced boom
- High strength, re-enforced arm

Parameter

MODEL	HD06	HD09	HD12	HD14	HD18	HD20
Drill diameter	6” (152mm)	9” (228mm)	12” (304mm)	14” (355mm)	18” (457mm)	20” (508mm)
Length of auger (mm)	673 mm	914 mm	559 mm	762 mm	762 mm	762 mm
P.T.O speed (rpm)	540	540	540	540	540	540
Gearbox rate	3:1	3:1	3:1	3:1	3:1	3:1
Construction mass (kg)	92	110	112	127	136	140
Power required	20-35HP	20-40HP	20-40HP	30-45HP	35-70HP	35-70HP
Matched model	20-40HP Series, 45-50HP Series, 55-65HP Series, EC Series, G2 Series, G3 Series
