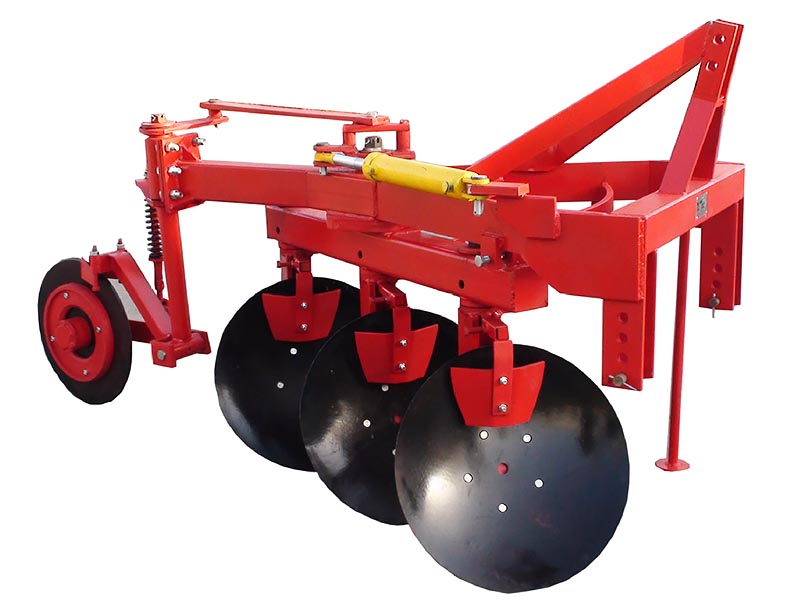

1LY(SX) Series Disc Plough

Two-way disc plough products are mainly used for tillage on dry cultivated or fallow land. They not only have the function of ordinary disc plough but also have the characteristics of short idle distance of travel on the edge of fields, high productivity,

We're here to help: Easy ways to get the answers you need.

Send Email Chat Now

Describe

Two-way disc plough

Two-way disc plough products are mainly used for tillage on dry cultivated or fallow land. They not only have the function of ordinary disc plough but also have the characteristics of short idle distance of travel on the edge of fields, high productivity, low oil consumption etc. They are also suitable for working on terraced fields and small piece of farming land.

Parameter

MODEL	1LY(SX)-325	1LY(SX)-425	1LY(SX)-525	1LY(SX)-625
Working width (mm)	750	1000	1250	1500
Working depth (mm)	250-300
Number of Disc (pc)	3	4	5	6
Dia. Of Disc (mm)	660
Net weight (kg)	700	800	900	1000
Matched power	60-65HP	75-80HP	100HP	100-120HP
Matched model	55-65HP Series 70-80HP Series 90-100HP Series
